Stainless Steel Seamless Heat Exchanger Tubes
|
Heat exchanger tubes are used for the cooling, heating or re-heating of fluids, gases, and air in a wide range of industries such as Fabrication of Shell & Tube Heat Exchangers, Oil refineries & Petrochemicals.
Supplied Heat Exchanger tubes with good surface finish, good corrosion resistance capacity, maintain closer dimensional tolerance and can be supplied after carrying out all mandatory testing and other optional tests wherever customer demand. |
|
Grade:
Size: Thickness: Specifications: Applications: |
TP-304/304L, TP-304H, TP-316/316L, TP-316H, TP-316Ti, TP-317/317L TP-321/321H,TP-347/347H, TP-405, TP-410, S31260, S31500, S31803, S32550, S32750, S32760.
6.00 mm OD to 101.6 mm OD 0.89 mm THK to 6.00 mm THK ASTM A-213, A-268, A-269, A-789, Equivalent to ASME, EN, JIS Etc. Oil & Gas, Petrochemical & Refinery, Airfin Cooler, LP HP Heaters, Fertilizer, Power Plant & All major industries. |

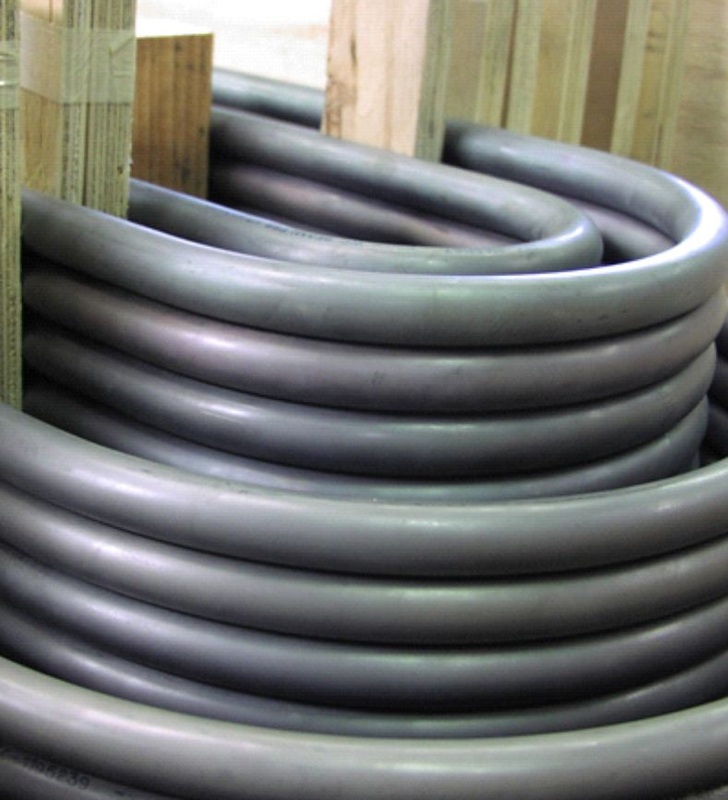

Stainless Steel Seamless Heat Exchanger ‘U’-Tubes
|
U-Tubes for the use in heat exchangers, condensers, pre-heaters and other applications. These U-Tubes are made in accordance with requirements of TEMA, ASTM A-688 and other statutory requirements or specifications.
“U” bending is done on seamless stainless steel straight tubes by cold working process. Depending upon the radius, which will be strictly according to drawing furnished by the customers, the straight tubes are bent on a pulley of known radius. Thereafter, the bend portion plus 6 inch leg length is stress relieved by resistance heating, The temperature is controlled and maintained with the help of suitable Pyrometer at required temperature and time. Inert gas is passed through it at the required flow rate to avoid inside oxidation. We guarantee the quality of U-tubes and the surface will be thoroughly cleaned to make double sure that the surface is perfect, free from any foreign materials and smooth without any deficiency in quality. |
|
Grade:
Size: Thickness: Specifications: Applications: |
TP-304/304L, TP-304H, TP-316/316L,TP-316H, TP-316Ti, TP-317/317L,TP-321/321H,TP-347/347H,TP-405,TP-410, S31260, S31500, S31803, S32205, S32550, S32750, S32760.
6.00 mm OD to 50.8 mm OD 0.89 mm THK to 5.00 mm THK ASTM A-213, A-268, A-269, A-789, Equivalent to ASME, EN, JIS Etc. Oil & Gas, Petrochemical & Refinery, Fertilizer, Power Plant & All major industries. |

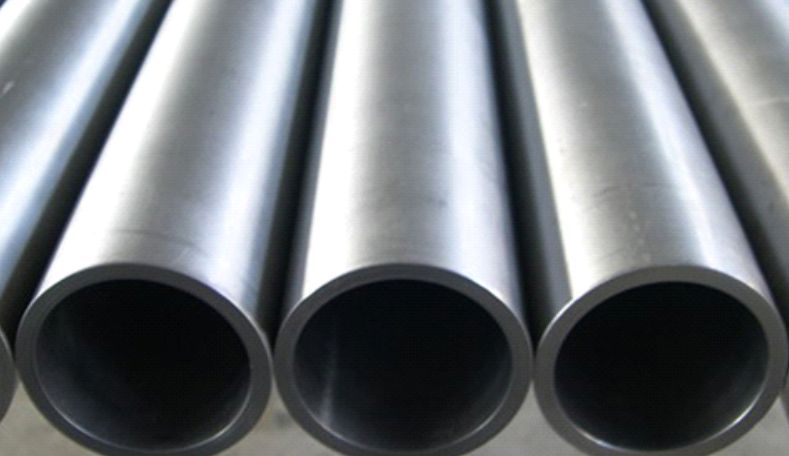

Stainless Steel Seamless Pipes
|
|

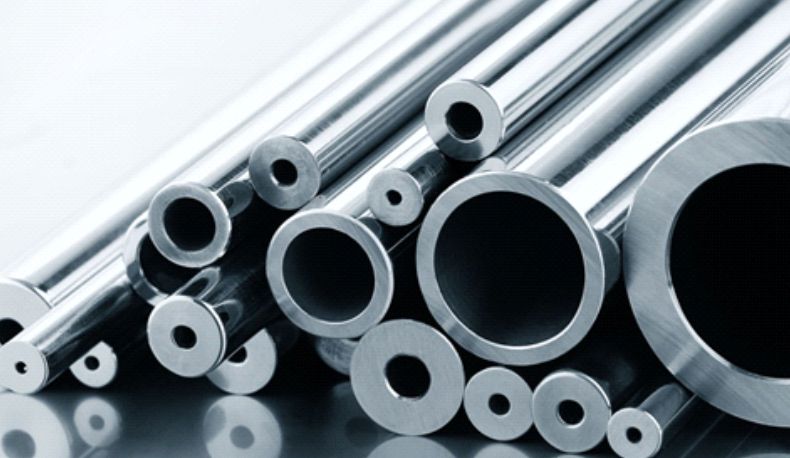

Stainless Steel Instrumentation Tubes
|
Best and high quality Bright Annealed Precision Seamless Tubes which are made stainless steel Austenitic, Ferritic, Martensitic, Duplex & Super Duplex.
These tubes are tested on various parameters like Strength, Durability, Temperature & Pressure resistance etc. before supplied to the clients. We can provide these in customized sized and specification as per requirement of customer’s Standard ASTM, ASME & Other equivalent specifications. |
|
Grade:
Size: Thickness: Specifications: Applications: |
TP304/304L, 304H, TP316/316L, 316Ti, TP317/317L, TP321/321H, TP347/347H, TP405,TP410, S31260, S31500, S31803, S32550, S32750, S32760.
6.00 mm OD to 25.4 mm OD 0.6 mm THK to 6.00 mm THK ASTM A-269, A-268, A-213, A-789, Equivalent to ASME, EN, JIS Etc. Heat Exchangers, Instrumentation, Hydraulic & Pneumatic system, Nuclear Power Plants, Automotive industries, Aerospace, Medical, Pharmaceutical. |

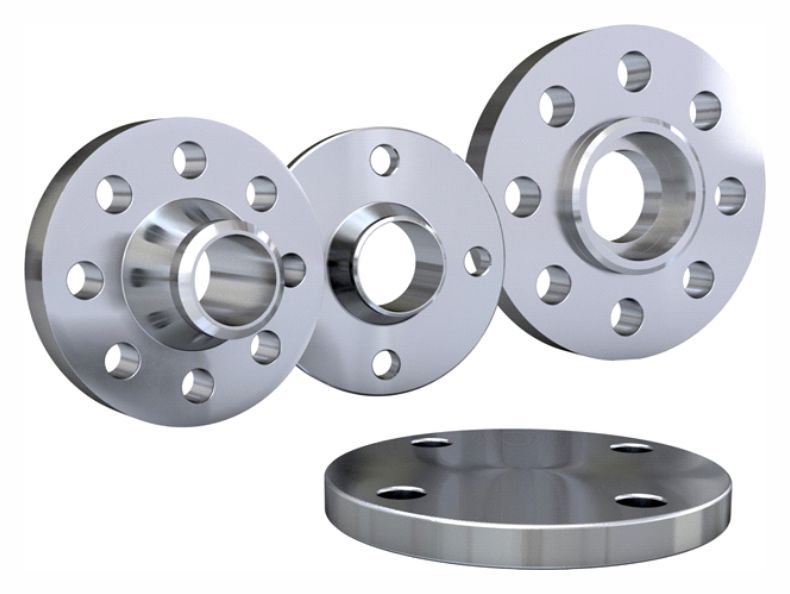

Stainless Steel Flanges
|
|

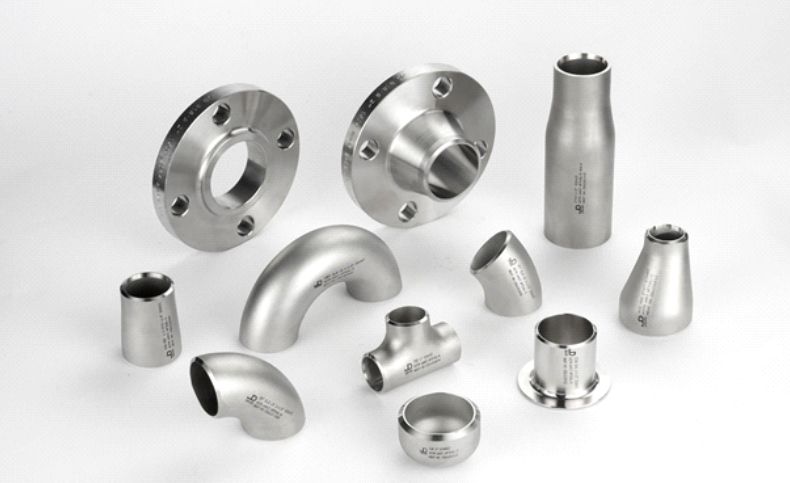

Seamless Fittings
|
Types :
• Elbow45°, 90°, 180° [LR and SR] • Tee [Equal and Unequal] • Crosses [Equal and Unequal] • Reducers [Eccentric and Concentric] • Stub ends [Long and Short] • Caps |
|
Grade:
Size: Schedules : Specifications: Applications: |
TP304/304L, 304H, TP316/316L,316Ti, TP317/317L, TP321/321H, TP347/347H, SS31803, S32550, S32750, S32760.
1/2″ in to 12” [10mm to 300mm] Seamless 5s. 10S, 20S, 30S, 40S, 60S, 80S, 100S, 120S, 140S, 160S, STD, XS, XXS. ASME/ANSI B16.9, ASME B16.25. Nuclear Power Plants, Oil & Gas, Petrochemical & Refinery, Chemical & Fertilizer, Power Plant & All major process industries. |

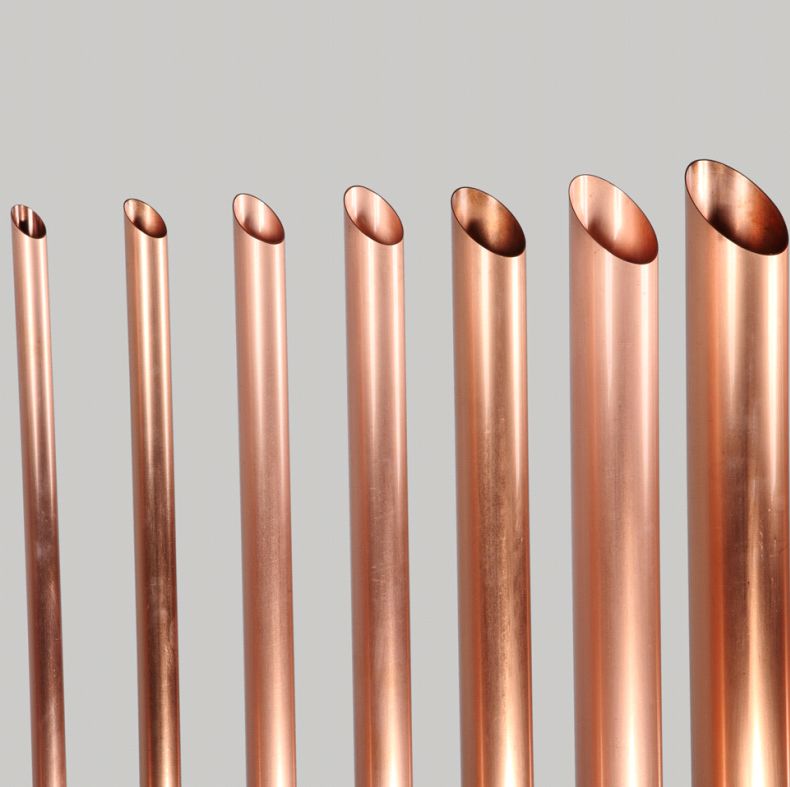

Copper Pipe
|
Available in a variety of tempers (viz. hard, half hard, quarter hard and soft annealed) depending upon the specific requirement. Standards other than those mentioned above are also available on request.
|

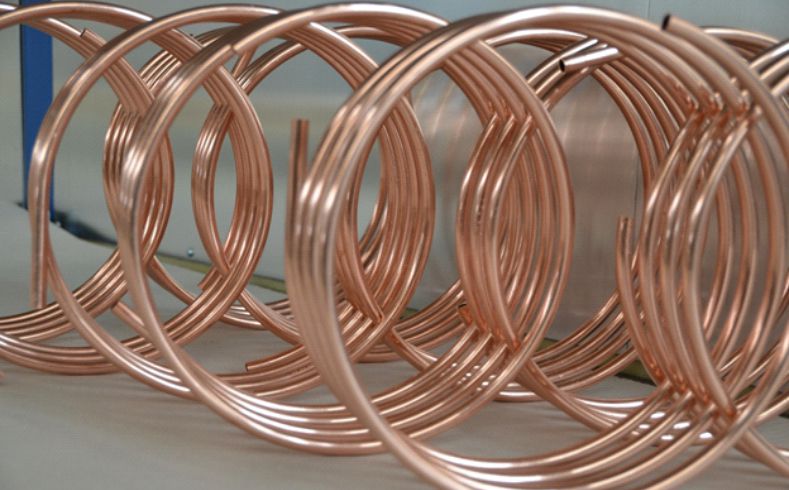

COPPER Coils
|
With a reputation of product excellence and reliability, MDN offers its customers a wide range of high quality, soft annealed, single/double layer, plain and plastic coated copper coils for diverse applications. These tubes are manufactured with an outside diameter tolerance of +0.0/-0.08mm (0.003”), annealed at approximately 600°C, giving a hardness range of 45/60 HV5. Our smooth bore copper tubes are characterized by their bright, clean and dry internal and external surfaces. Superior dimensional control offers a trouble free performance and cost saving. The tube ends are capped at both ends to maintain the standard of cleanliness.
|
|
Size:
Thickness: Specifications: Applications: |
3.00 mm OD to 28.00 mm OD
0.4 mm THK and Above. ASTM,ASME,BS, JIS,DIN Etc. Refrigeration and air conditioning, oil and gas lines and general engineering applications. |

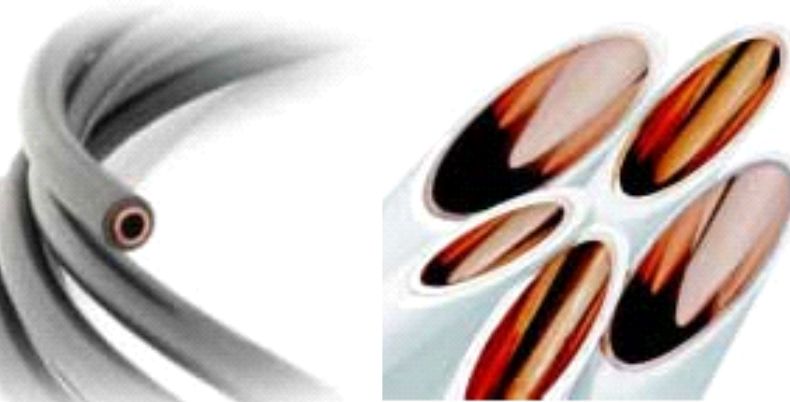

PVC Coated Copper Coils
|
These PVC coated copper tubes – Plastic coated copper tubes are available in a variety of options for use when copper tube is to be used in a potentially aggressive environment to ensure copper tube’s longetivity in service.
These PVC coated copper tube – Plastic Coated Copper Tubes eliminates the need for on-site tape wrapping or sleeving , creating a savings on labor and ensuring a professional looking installation. |
|
Size:
Thickness: Specifications: Applications: |
4.00 mm OD to 22.00 mm OD
0.35 mm THK and Above. ASTM, Etc. Air conditioning & Refrigeration, Natural & LPG Gas Applications, Fuel Oil Applications, Cold & Hot water applications, Chemical applications etc |
High Tensail and Stainless Steel Fastners
|
Types
Bolts/Screw : Hex Bolts, Socket-Allen CSK Head Bolts, Liner Bolts Stud : Full Thread Stud, Half Thread Stud, Double Ended Stud Nut : Hex Nut, Square Nut, Lock Nut Washer : Plain Washer, Spring Washer, Lock Washer Special Product : U-Bolts, Eye Bolts, As Per Clients Design Fasteners |
Grade:
Size: Metrics : M12 TO M72
Inch Size: ½ INCH TO 3 INCH
Specification :
ASTM/ASME,ISO,IS,DIN,BS
Surface:
Blackodize, Ptfe-Xylon Coating, Zink Plated,Hot-Deep, Galvanize, Cadmiam Coting, Goldan Coating, Eletro Plating,Buffing,
Applications:
Nuclear Power Plants, Oil & Gas, Petrochemical & Refinery, Chemical & Fertilizer, Power Plant & All major process industries.
- Alloy Steel: High Tensail,EN8,EN8D,EN19,B16
- Stainless Steel :TP 304/L,TP 316/L/Ti ,TP 321,TP 310
- Duplex : UNS S31803,UNS S32205,
- Super Duplex: UNS S32750, UNS S32760
- High Nickle Alloy: INCOLOY 600,625,800,825,750,MONEL 400, HASTELLOY
Size: Metrics : M12 TO M72
Inch Size: ½ INCH TO 3 INCH
Specification :
ASTM/ASME,ISO,IS,DIN,BS
Surface:
Blackodize, Ptfe-Xylon Coating, Zink Plated,Hot-Deep, Galvanize, Cadmiam Coting, Goldan Coating, Eletro Plating,Buffing,
Applications:
Nuclear Power Plants, Oil & Gas, Petrochemical & Refinery, Chemical & Fertilizer, Power Plant & All major process industries.
